| Code | D | R | A | B | H | E | d |
| SPL4-01 | 4 | PT 1/8 | 7 | 25.5 | 10 | 18.5 | - |
| SPL4-02 | 4 | PT 1/4 | 9 | 28 | 14 | 18.5 | - |
| SPL6-01 | 6 | PT 1/8 | 7 | 27.5 | 12 | 20.5 | 3.5 |
| SPL6-02 | 6 | PT 1/4 | 9 | 30 | 14 | 20.5 | 3.5 |
| SPL6-03 | 6 | PT 3/8 | 10 | 31 | 17 | 20.5 | 3.5 |
| SPL6-04 | 6 | PT 1/2 | 11 | 32 | 21 | 20.5 | 3.5 |
| SPL8-01 | 8 | PT 1/8 | 8 | 31 | 14 | 23 | 4.5 |
| SPL8-02 | 8 | PT 1/2 | 10 | 33 | 14 | 23 | 4.5 |
| SPL8-03 | 8 | PT 3/8 | 10 | 33.5 | 17 | 23 | 4.5 |
| SPL8-04 | 8 | PT 1/2 | 11 | 35 | 21 | 23 | 4.5 |
| SPL10-01 | 10 | PT 1/8 | 8 | 35.5 | 17 | 28 | 4 |
| SPL10-02 | 10 | PT 1/2 | 10 | 37.5 | 17 | 28 | 4 |
| SPL10-03 | 10 | PT 3/8 | 10 | 37.5 | 17 | 28 | 4 |
| SPL10-04 | 10 | PT 1/2 | 11 | 38.5 | 21 | 28 | 4 |
| SPL12-01 | 12 | PT 1/8 | 8 | 38.5 | 19 | 30.5 | 5 |
| SPL12-02 | 12 | PT 1/2 | 10 | 40.5 | 19 | 30.5 | 5 |
| SPL12-03 | 12 | PT 3/8 | 10 | 40.5 | 19 | 30.5 | 5 |
| SPL12-04 | 12 | PT 1/4 | 11 | 41.5 | 21 | 35 | 5 |

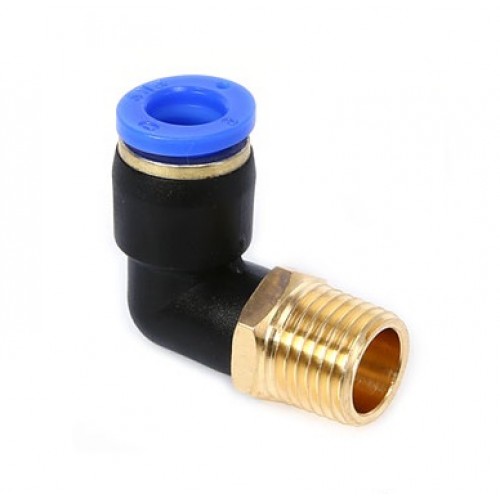

SNS Male Elbow Fitting SPL
Product Code:
SPL
Brand:
SNS
Availability: Pre-Order
RM3.20
with the options selected
